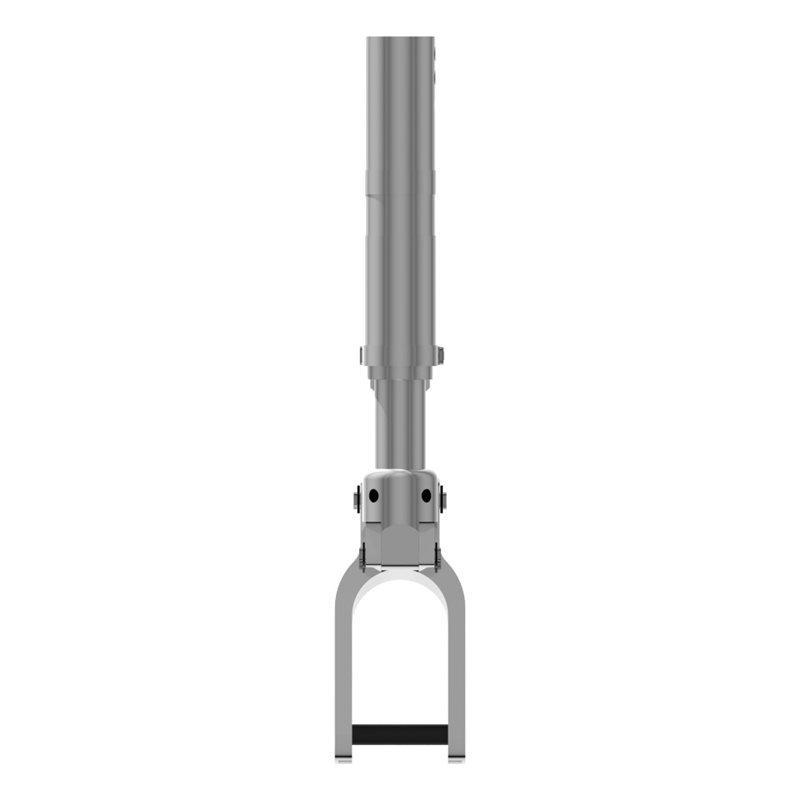

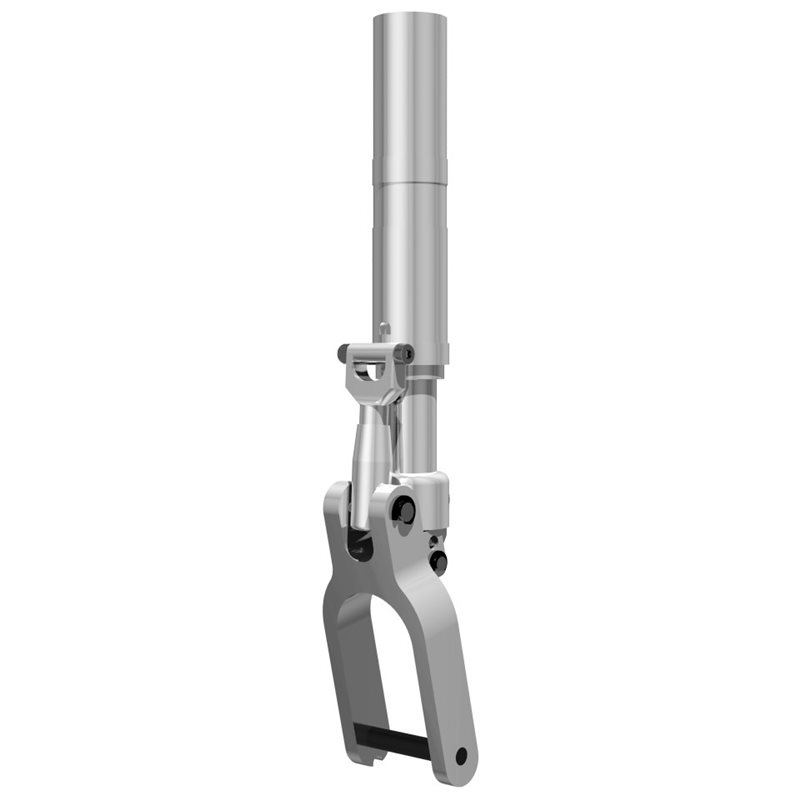

Straight Trailing-Leg mm.200 "Oleolegs" Leg (hard spring)
CAR/15163/050
New
Ergal Straight Trailing-Leg Oleodynamic Leg, with hard spring, main leg use
wheel hub in axis with leg, for models with straight leg-wheel bay
mm.200 length, the inclination of the fork is adjustable by lengthening the front arm
for ø 75-90 mm. wheels suitable for 12-20 Kg. model airplanes
More info

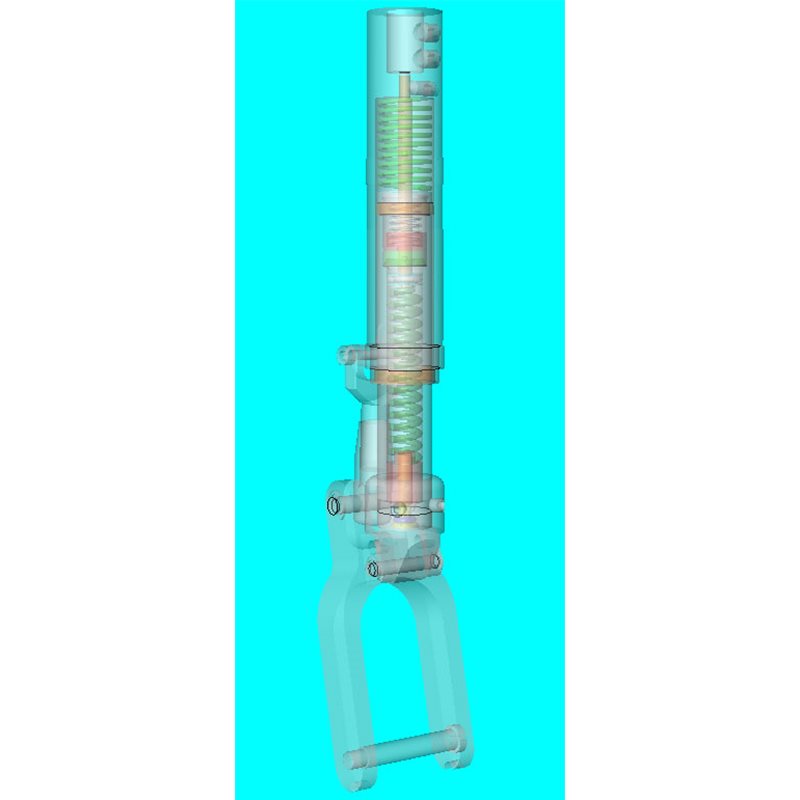

The operation has the same features as in real ones, the dumping occurs through the combined action of the spring and the oil contained in the telescopic leg. Smooth strength absorption due to the long travel of the leg so preventing model bouncing in case to hard landing. The legs are made in ERGAL 7075, hence they are considerably sturdier than standard legs, besides they have also an effective anti-twist device.
lenght 200 mm.
body ø 21 mm.
fixing pin ø 10 mm.
wheel axle ø 6 mm.
weight 180 gr.
damper stroke 15 mm. - wheel axle stroke 32 mm.

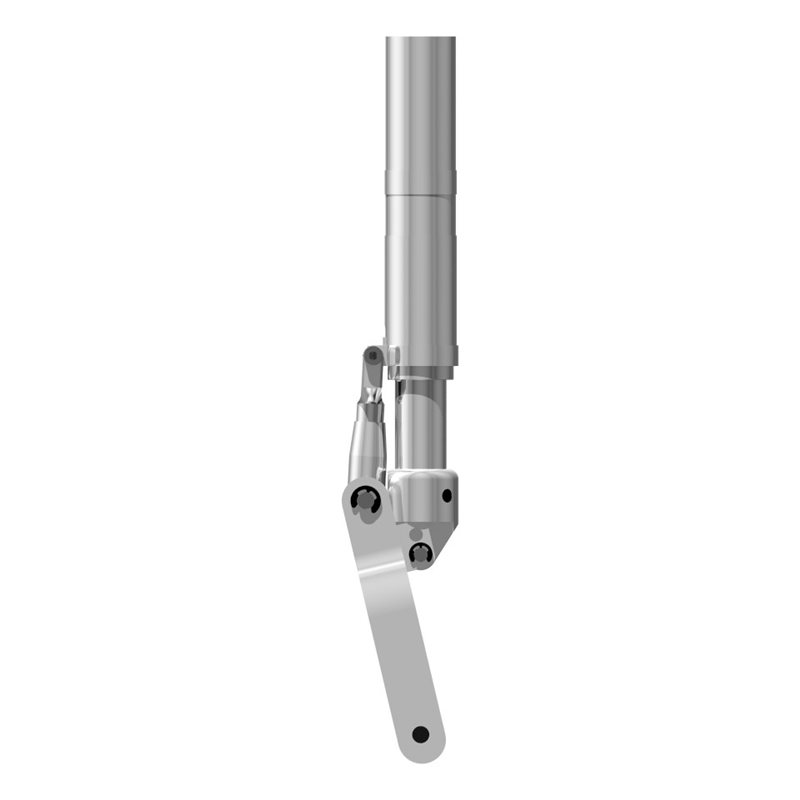

The inclination of the fork at rest can be varied from 14° up to 24° by lengthening the front arm.
